DynaScan DS861LR4 218.44cm (86) High Brightness (Speditionsversand)
Product code: 14416522 // MPN: DS861LR4
Similar products
86” 3500 Nits Ultra-High Brightness Digital Signage Display
Measuring 86 inches. the DS861LR4 is the largest ultra-high bright professional LCD offering from DynaScan. The display features UHD 4K resolution with a high brightness LED backlight producing a 3500 nit sunlight-viewable image. Designed for large scale display applications in bright environments such as outdoor enclosures and storefront windows. each screen is TrueColor™ calibrated for remarkable color reproduction.
Sunlight Viewable

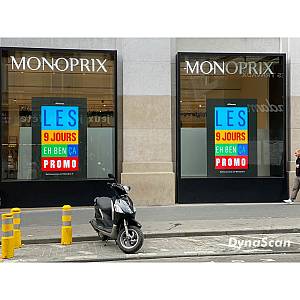

Designed for large-scale display applications in bright environments such as outdoor enclosures and storefront windows. the DS861LR4 features a high brightness LED backlight producing a 3500 nit sunlight-viewable image.
TrueColor™ Calibrated
Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true. natural white. but also accurately reproduces brand colors. skin tones. and colorways.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
Ultra HD 4K Resolution
With Ultra HD 4K resolution. the DS861LR4 provides a super sharp image for easy-to-read text and incredible detail.
Built-In Media Player
An integrated Android™ based media player with WiFi offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback. playlist creation. and content scheduling.
Intel® SDM Ready
An Intel® SDM slot to accept an Intel® Smart Display Module (sold separately). Supporting a variety of modern x64 operating systems. Intel® SDM delivers the same level of intelligence and interoperability as the Open Pluggable Specification. but in a smaller form factor. Compatible with both the Intel® Small (Intel® SDM–S) and Intel® SDM Large (Intel® SDM–L) form factors.
Display
Display diagonal: 2.17 m (85.6")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 3500 cd/m²
HD type: 4K Ultra HD
Response time: 8 ms
Contrast ratio (typical): 3000:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Panel life: 100000 h
Haze rate: 3%
Ports & interfaces
HDMI ports quantity: 2
HDMI input ports quantity: 2
DisplayPorts quantity: 1
Feature: USB port
USB ports quantity: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)
Feature: Ethernet LAN
Feature: Wi-Fi
Audio (L/R) out: 1
Feature: RS-232 interface
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Design
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.78 cm
Bezel width (side): 1.78 cm
Bezel width (top): 1.78 cm
Performance
Purpose: Universal
On Screen Display (OSD) languages: English
Feature: Ambient light sensor
Power
Power consumption (typical): 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Computer system
Internal storage capacity: 16 GB
Operating system installed: Android 8.0
Weight & dimensions
Width: 1935.8 mm
Depth: 79 mm
Height: 1106.8 mm
Weight: 77 kg
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 80%
Storage temperature (T-T): -20 - 60 °C
Certificates
Certification: CE / FCC / RoHS
Logistics data
Harmonized System (HS) code: 85285210
