POWER SUPPLY (PSU)

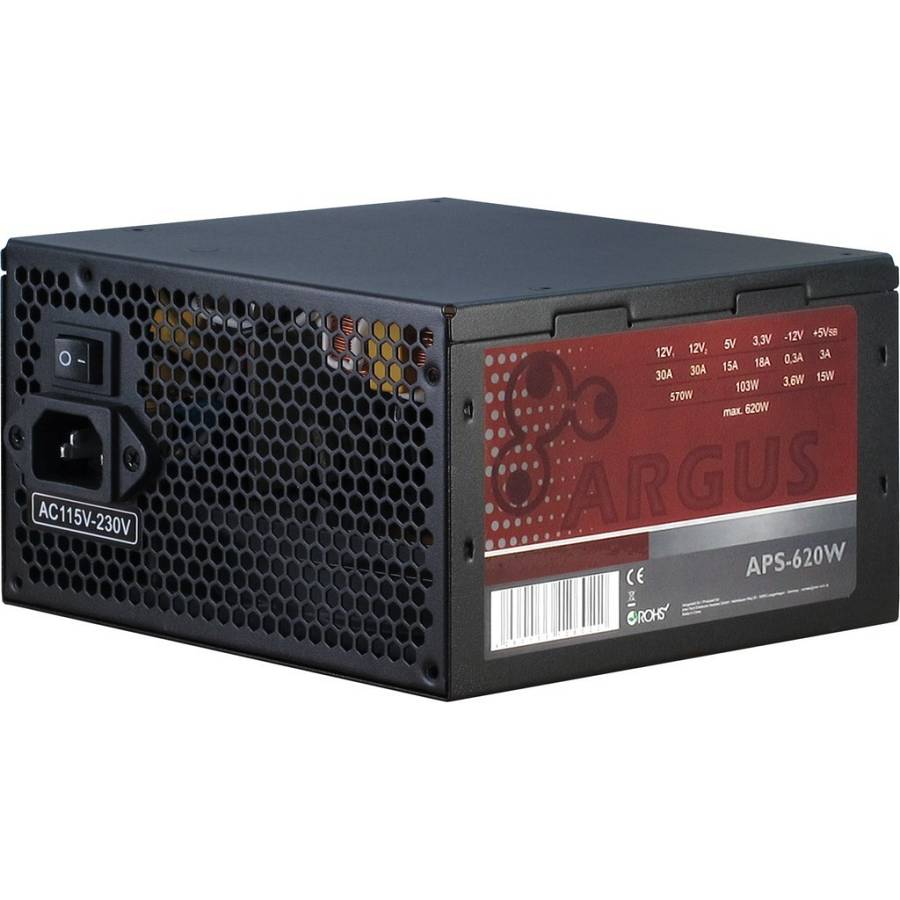

- The Argus APS-620W – ideal for sophisticated office and gaming solutions
- The Argus APS-620W provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet.
- Thanks to the efficient construction and the ideal configured connector layout the APS-620W provides with sufficient performance for the connected components.
- The yellow 120mm fan works silently and ensures an optimal cooling of the power supply.

Power
Total power: 620 W
AC input voltage: 115 - 230 V
AC input frequency: 47 - 63 Hz
Maximum input current (@110V): +12V1.+12V2.+3.3V.+5V.+5Vsb.-12V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 103 W
Combined power (+5V): 103 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 30 A
Max output current (+12V2): 30 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 1
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Noise level: 21 dB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.28 kg
Packaging data
Feature: Manual
Package width: 240 mm
Package depth: 95 mm
Package height: 170 mm
Package weight: 1.62 kg
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
